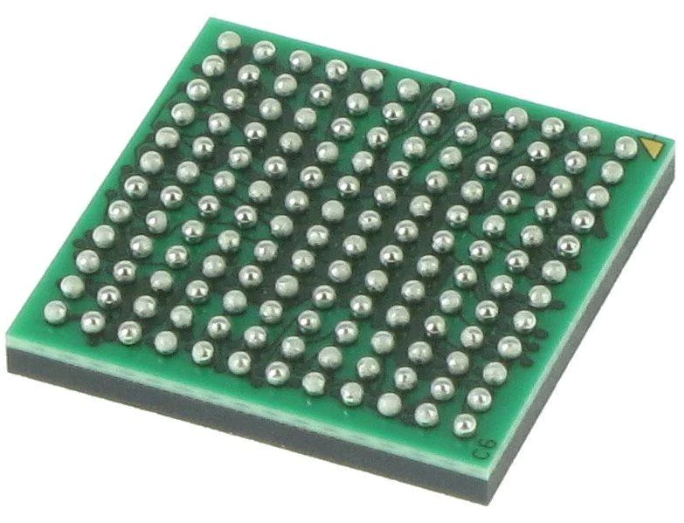

ADC12DJ3200AAV TI 模數轉換器 - ADC 12-bit, dual 3.2-GSPS or single 6.4-GSPS, RF-sampling analog-to-digital converter (ADC) 144-FCBGA -40 to 85
| 制造商: | Texas Instruments | |
| 產品種類: | 模數轉換器 - ADC | |
| 發貨限制： | Mouser 目前在您所在地區不銷售該產品。 | |
| RoHS: | 詳細信息 | |
| 系列: | ADC12DJ3200 | |
| 安裝風格: | SMD/SMT | |
| 封裝 / 箱體: | FCBGA-144 | |
| 分辨率: | 12 bit | |
| 通道數量: | 1 Channel/2 Channel | |
| 接口類型: | Serial | |
| 采樣比: | 3.2 GS/s, 6.4 GS/s | |
| 輸入類型: | Differential/Single-Ended | |
| 結構: | Folding Interpolating | |
| 模擬電源電壓: | 1.8 V to 2 V | |
| 數字電源電壓: | 1.05 V to 1.15 V | |
| SNR – 信噪比: | 56.6 dB | |
| 最小工作溫度: | - 40 C | |
| 最大工作溫度: | + 85 C | |
| 封裝: | Tray | |
| 商標: | Texas Instruments | |
| 開發套件: | ADC12DJ3200EVM | |
| DNL - 微分非線性: | 0.3 LSB | |
| ENOB - 有效位數: | 9 Bit | |
| 特點: | Ultra High Speed | |
| FPBW - 全功率頻寬: | 8.1 GHz | |
| INL - 積分非線性: | 2.5 LSB | |
| 濕度敏感性: | Yes | |
| 轉換器數量: | 2 Converter | |
| 功耗: | 3 W | |
| 產品: | Analog to Digital Converters | |
| 產品類型: | ADCs - Analog to Digital Converters | |
| 參考類型: | Internal | |
| SFDR - 無雜散動態范圍: | 67 dB | |
| 關閉: | No Shutdown | |
| SINAD - 信噪和失真率: | 56 dB | |
| 工廠包裝數量: | 1 | |
| 子類別: | Data Converter ICs | |
| 類型: | High Speed ADC | |
| 單位重量: | 328.500 mg |
